PRODUCT

PON

EPON ONU GPON ONU XPON ONU EPON OLT GPON OLT WIRELESS ROUTER

EPON ONU 4FE PORTS WITH WIFI GDONU100-4FW

GDONU100-4FW follows the EPON communication standard. It is a gateway device with routing function for home and ...

Current position：HOME > PON

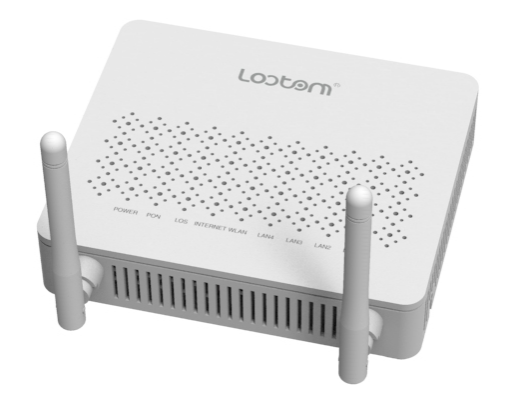

EPON ONU 4FE PORTS WITH WIFI GDONU100-4FW

Overview    GDONU100-4FW follows the EPON communication standard. It is a gateway device with routing function for home and SOHO users to meet the characteristics of broadband network construction. It contains EPON ONU, WLAN AP, LAN Switch and many other functions. GDONU100-4FW has one uplink PON port to connect with OLT (Optical Line Terminal) and in combination with ODN (Optical Distribution Network) to build a complete EPON system and can realize FTTH according to user's choice of device type to realize. Features    It complies with the IEEE 802.3 ah EPON standard, conforms to the requirements of the overall technology family gateway of China telecom, supports the standard of many other brands, can realize the remote management, maintenance and configuration for OLT and supports telnet remote maintenance and configuration and support the software online upgrade.
   Conform to the following standard:
        ● support the EPON equipment interoperability requirements, to meet all extended OAM functions
        ● the access network technology requirements-based on IEEE standard
        ● IEEE802.3ah
        ● IEEE802.3，IEEE802.3x
        ● IEEE802.1p priority
        ● IEEE802.1q VLAN
        ● IEEE 802.11n 2.4GHz
        ● Support WIFI and multi-SSID
        ● Support routing and PPPO dialing Technical Specifications        ONU?Basic?Parameter:

Model	GDONU100-4FE
User Interface	4 * 10/100M BASE-T self-adaptive RJ45 interfaces
PON Interface	Symmetrical transmission rate of 1Gbps for downlink and uplink Network coverage radius: 20KM Optical connector: SC/PC High sensitivity optical receiver ≥-26dBm Transmitting power:0~4dBm Security: ONU identification mechanism
Dimension	170mm125mm33mm(wdh) box:220mm230mm70mm 0.5kg
Dimension	Installation: plug and play
Heat Dispersion	Long term use will not result in any form of performance degradation or component damage
Environmental Requirement	Operating environment:-5℃~60℃;10%~90% non-condensation
Environmental Requirement	Storage environment:-40℃~80℃;5%~95% non-condensation
Power Supply	Switch adapter
	Input voltage: AC 110V~240V,50/60Hz
	Scope range of input rated voltage:domestic ±20%;international ±10%
	Power≤5W
Body Case	Plastic

WIFI?Parameter:

Frequency range	2.4~2.4835GHz
Transmission rate	11n：270/243/216/162/108/81/54/27Mbps 135/121.5/108/81/54/40.5/27/13.5Mbps 130/117/104/78/52/39/26/13Mbps 65/58.5/52/39/26/19.5/13/6.5Mbps 135/121.5/108/81/54/40.5/27/13.5Mbps 130/117/104/78/52/39/26/13Mbps 65/58.5/52/39/26/19.5/13/6.5Mbps
	IEEE802.11g： 54/48/36/24/18/12/9/6(self-adaption)
	IEEE 802.11b ：11/5.5/2/1M(self-adaption)
Working channel amount	13
Screen show	DSSS
Data modulation	DBPSK、DQPSK、CCK and OFDM(BPSK/QPSK/16-QAM/64-QAM)
Sensitivity@PER	135M:-65dBm@10% PER 54M:-70dBm@10% PER 11M:-85dBm@8% PER 1M:-91dBm@8% PER
Transmission distance	Indoor:<120m outdoor:<360m Outdoor:<360m(depends on the environment)
RF power supply	20dBm EIRP(11b)

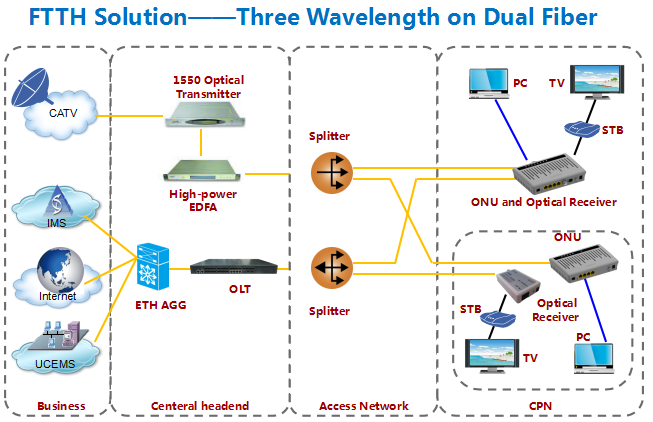

Network diagram
